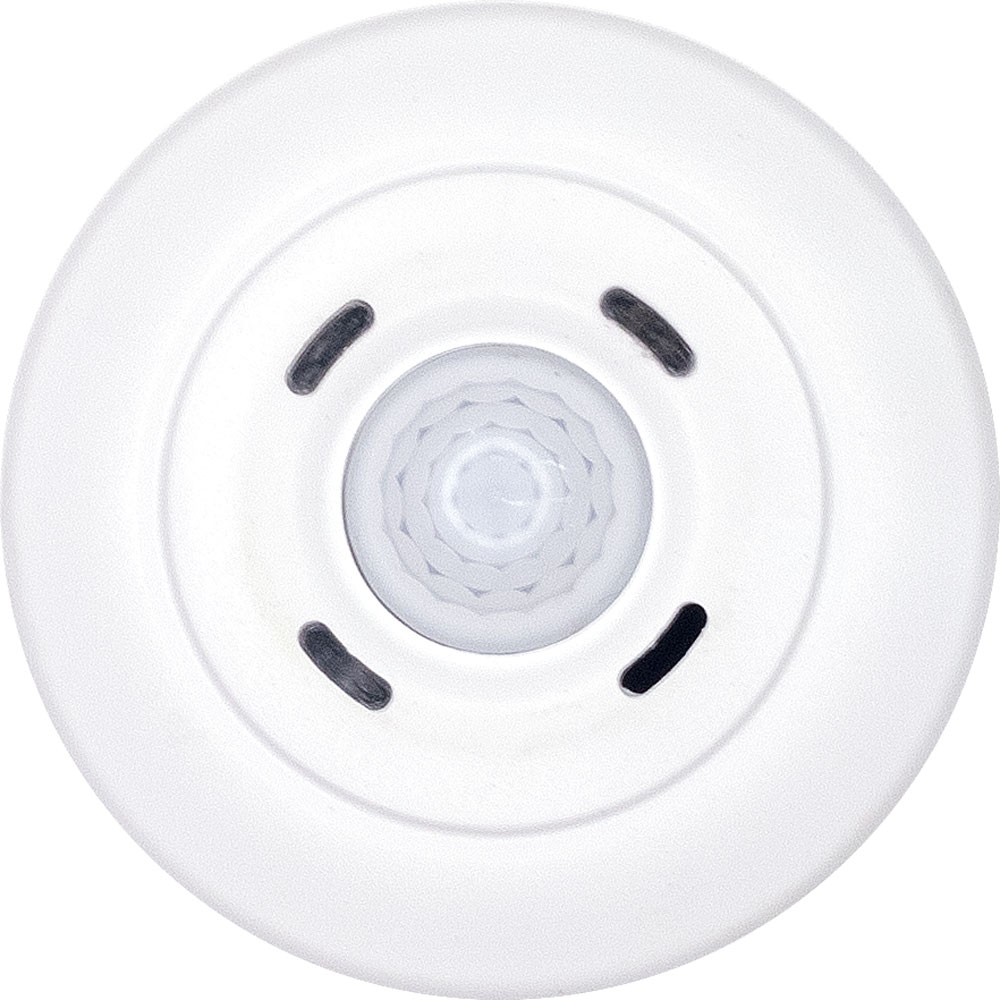

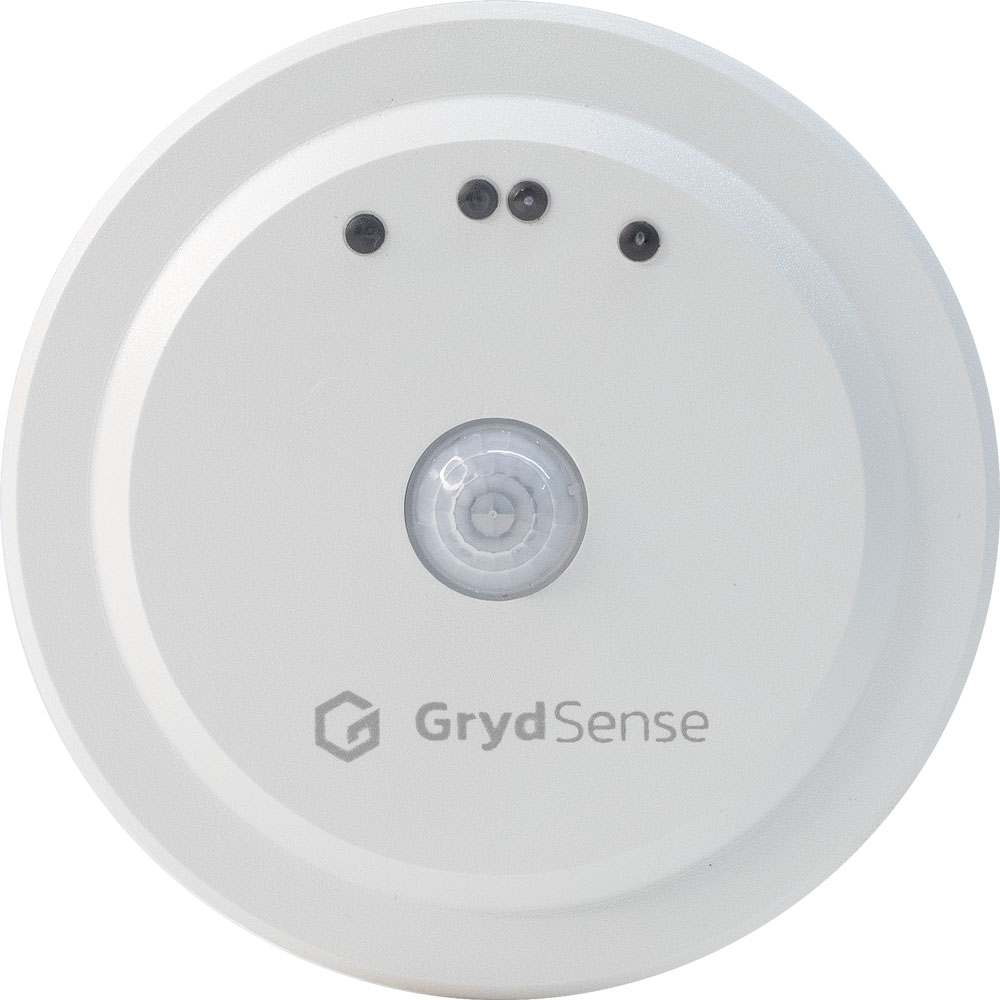

OMNOS is an integrated wireless sensor, capable of occupancy detection and people counting. The passive infrared (PIR) sensors automatically control lights via integrated dimming and switching devices, control of LED drivers using DALI or 0-10V. The sensor is unique in nature due to its capability of edge processing of data for people counting, the processed data is then transmitted wirelessly to a cloud-based application via a gateway for analytics. The control system is dynamic, configurable during installation and commissioning process. Option for ON / OFF control system is also provided with the sensor.

Individual loads could be switched on/off and dimming

• Up-to 8 lighting loads can be looped on DALI / 0-10V line
• Individual ballast / driver addressing for DALI
• Individual ballast / driver control
• 6 Scene settings
• 4 Group settings
• Non-Volatile memory backup
• Zero or Minimal commissioning requirement for default operations
• Multiple ceiling-mount methods available
• Integrated people counting sensor with edge processing

Models Available

1. GRYD-WR-SS-INT-WH-C (White Circular)
2. GRYD-WR-SS-INT-WH-L (White Linear)
3. GRYD-WR-SS-INT-BK-C (Black Circular)
4. GRYD-WR-SS-INT-BK-L (Black Linear)

GrydSense IAQ (Indoor Air Quality) sensor is world’s most advanced indoor air quality sensor combining multiple air quality sensors into one compact product. The Sensor collects data to help corporate real estate professionals to measure and analyse air quality at various places inside the building. Being smallest sensor, it has various sensing parameters engineered into a compact product. The sensor only transmits binary sensor information on wireless Bluetooth mesh network or on a POE based IP network
using industry standard Modbus TCP protocol.

GrydSense IAQ sensor includes the following sensing
elements: CO2, PM1, PM4, PM2.5, PM10, Temperature, Humidity, TVOC, Pressure, Noise (both decibels and Frequency for white
noise), IAQ, Carbon monoxide (optional), Nitrogen Dioxide (optional)

Models Available

1. GRYD-IAQ-WL-WH – Bluetooth Wireless based IAQ sensor (white colour)
2. GRYD-IAQ-POE-WH – POE based Modbus TCP sensor (white colour)

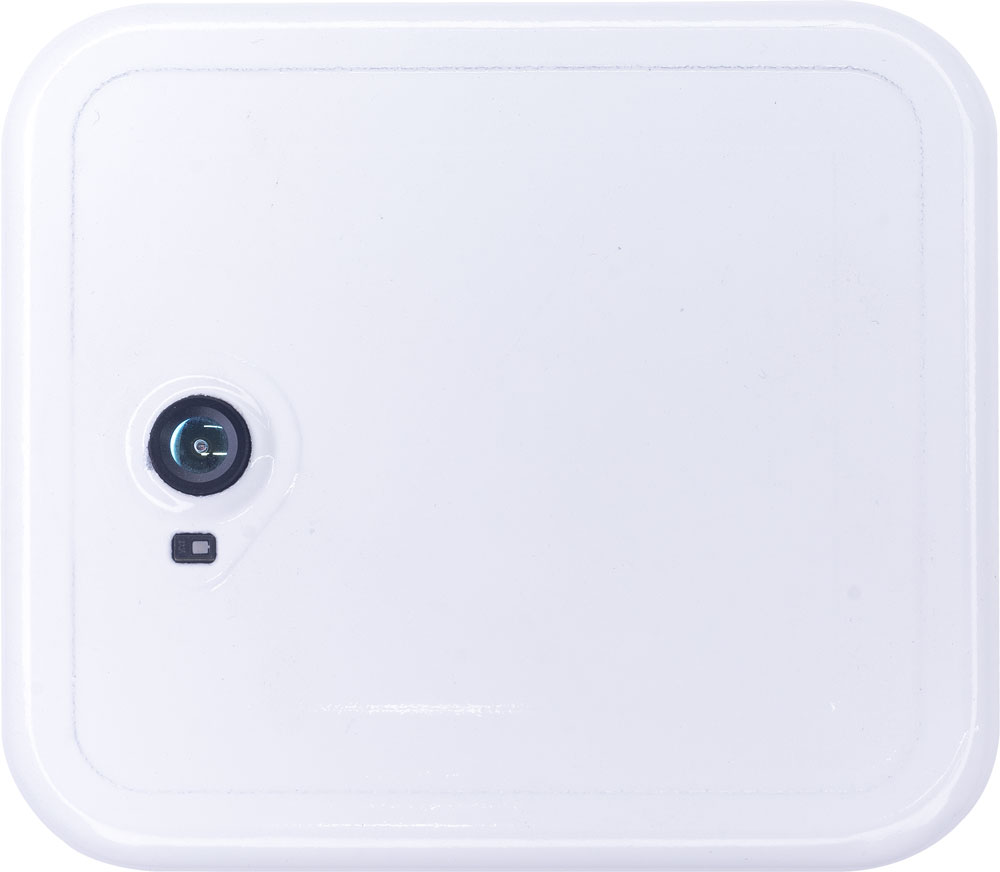

People Counter, a state-of-the-art people counting sensor designed for top-notch person detection, tracking, and counting with unparalleled precision. Harnessing the combined strength of AI and 3D point cloud data, it can distinguish between humans and non-human objects with an impressive 99.8% accuracy, ensuring you get only the most reliable data. It seamlessly captures 3D point cloud data, allowing for anonymous detection and tracking of people’s movements in and out of an area. And, with its simplistic, real-time processing and low-complexity AI-powered algorithm, it can handle high flows of people at an impressive 30 FPS execution on edge. All this data is effortlessly transmitted to the cloud via a gateway.

• Unparalleled Precision – 99.8% accuracy
• Bi-directional counting capabilities
• Accommodates individuals making U-turns
• Counts individuals regardless of accessories like bags, hats, or caps
• Utilizes Time of Flight (TOF) technology
• Expansive coverage due to a wide Field of View (FOV)
• TOF enables to performs optimally in dim or dark environments
• Count the people’s flow anonymously
• Efficient Power over Ethernet using a POE-splitter
• Plug-and-play with little to no setup needed for standard operations
• Multiple ceiling-mount methods available
• People counting sensors with edge processing

Models Available

1. GRYD-DRE-WH-SQ-POE
2. GRYD-DRE-WH-SQ-WF

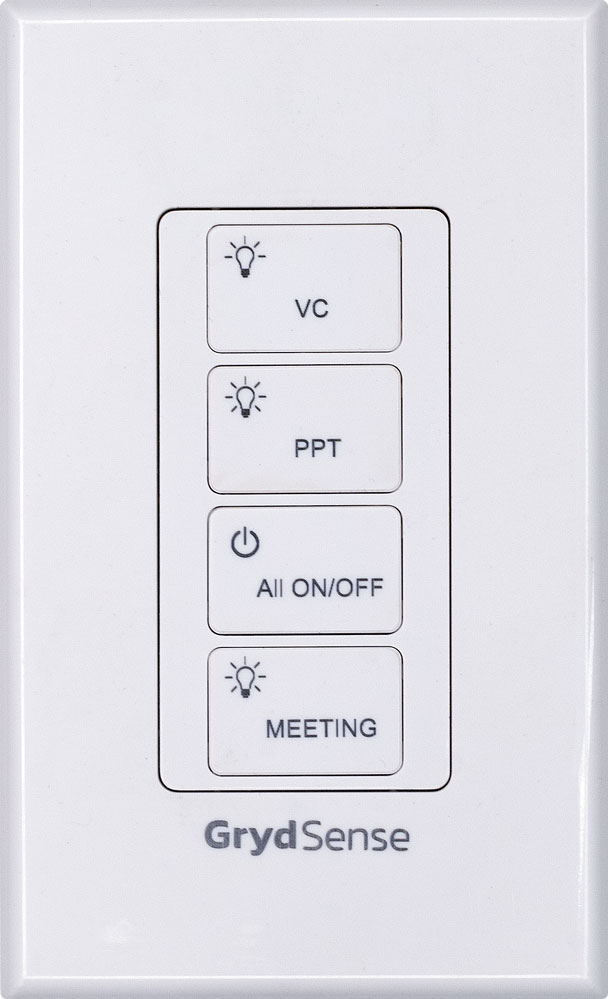

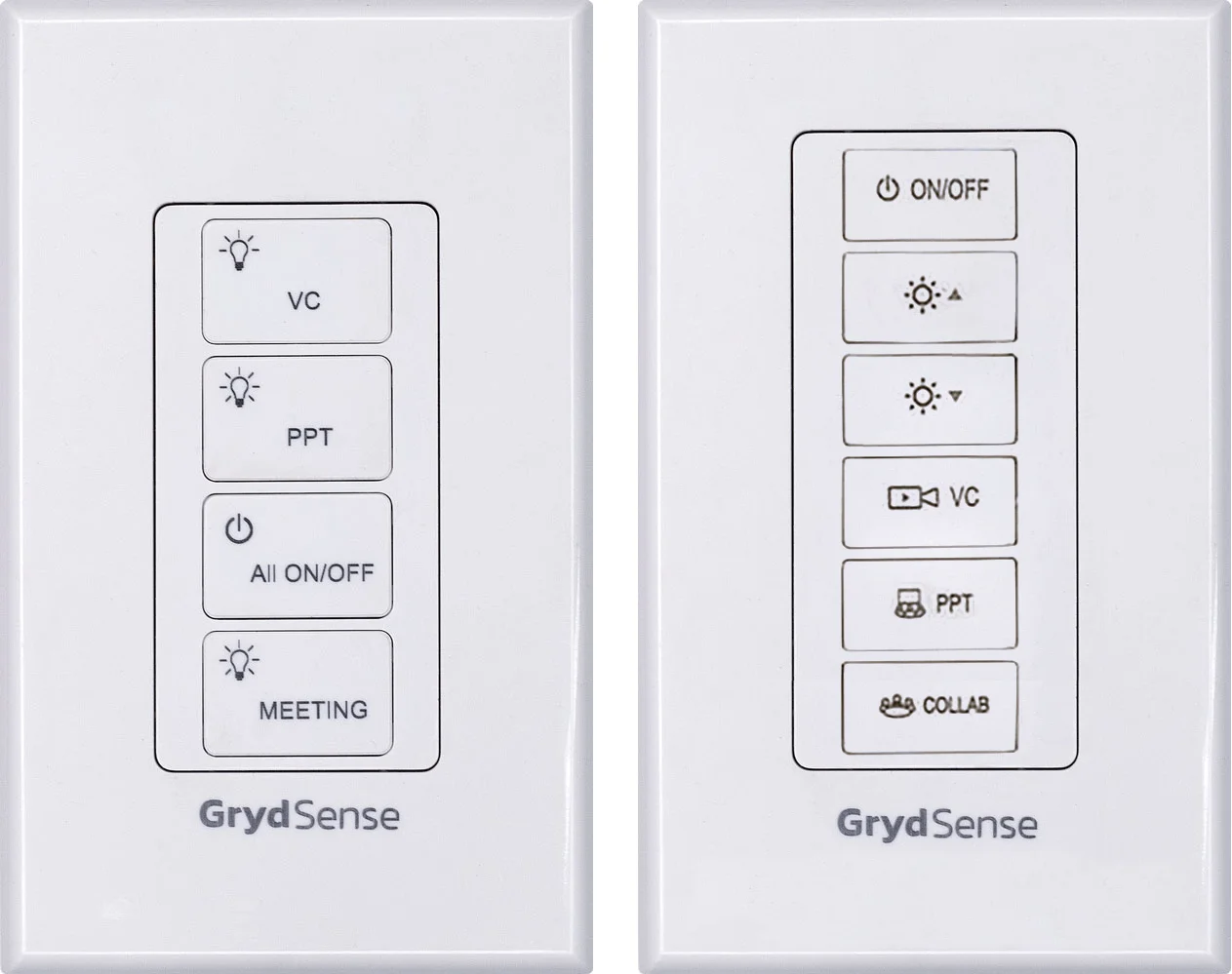

Switch provides the user with intelligent lighting controls in which the user can personalize the brightness levels and change to different scenes based on their requirement.

• Wireless Lighting / Scene control switch
• Wireless Communication using secure BLE mesh technology
• Personalize Brightness levels
• Change to various scenes based on the requirement

Models Available

1. GRYD-AREA-4S-W – 4 Button Area Controller White color
2. GRYD-AREA-4S-B – 4 Button Area Controller Black color

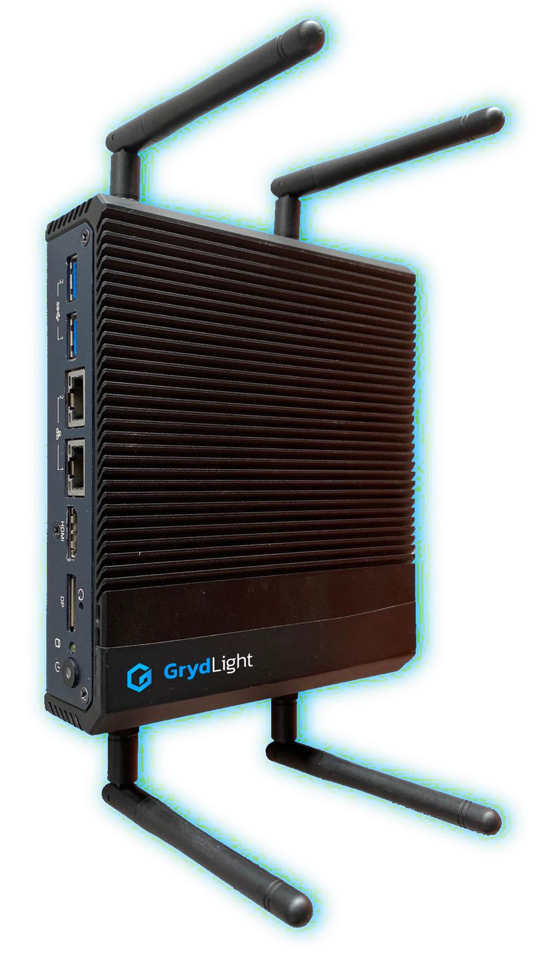

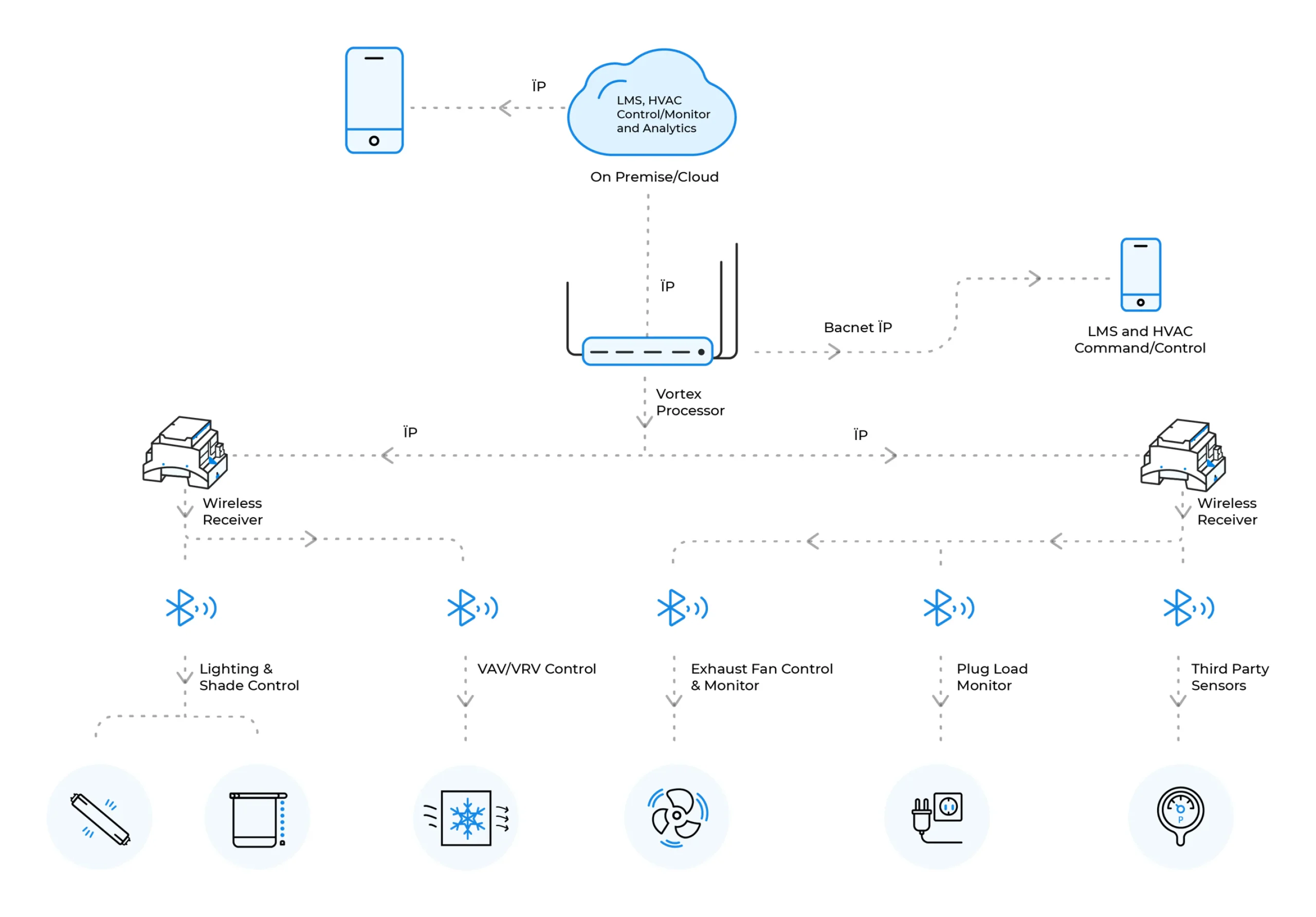

Vortex processor is an Intelligent Lighting Management Processor which is pre-assembled and tested to control multiple load types. Supporting up to 32 GrydLight controller in a network.

• Supports up to 32 GrydLight Controllers (3000+ Lights per Vortex processor)
• Scalable from a single area or floor; to a building or whole campus
• Secured communication with the cloud LMS
• Individually control, monitor and adjust any light in a space
• Supports BacNet IP, Modbus TCP protocols
• 3rd party integration with BacNet IP protocol
• Supports Ethernet and WiFi (Optional)
• Ruggedized Enclosure for maximum thermal performance

Models Available

GRYD-Vortex-4M – 4 GB RAM version

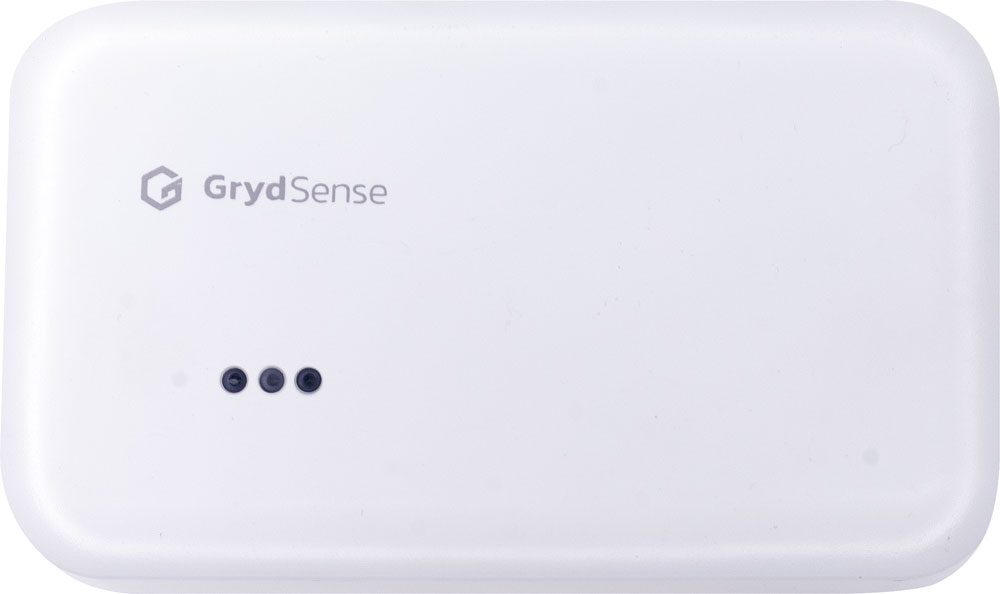

GrydSense Wireless aggregator is PoE powered transceiver that receive information from Wireless devices and transmits them to the gateway via Wired Ethernet Network. The wireless aggregator can receive data from 150 connected devices.

• Simple and Secure Zero touch commission
• Up to 30 meters indoor range
• Configurable from anywhere via cloud interface
• Multiple ceiling mount options available

Models Available

GRYD-AG-POE – Aggregator with POE power supply

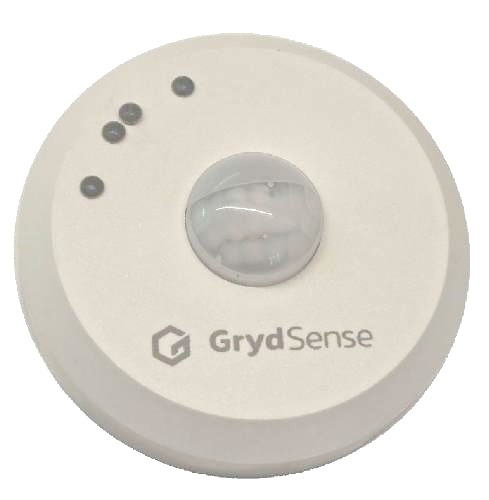

Wireless DALI Sensor is an occupancy detection device used for control of light(s) using DALI control systems. The passive infrared (PIR) sensors automatically control lights via integrated dimming and switching devices, control of LED drivers using DALI protocol. The data is then transmitted to the cloud-based application for analytics. Ambient Light Sensor on board measures the current light intensity and provides a closed control loop to the system for efficient dimming of the light(s). The control system is dynamic, configurable during installation and commissioning process. Option for ON/OFF control system is also provided with the sensor.

• Controls up to 124 Dali based lighting fixtures
• Each GS-link loop can connect up to 20 sensors
• Simple and Intuitive commissioning of lights and sensors
• It can loop the light/s to sensors, i.e., the lights / ballasts which are to be controlled based on the sensor trigger
• Sensor Commissioning, DALI Commissioning, Sensor Factory Reset, Controller Factory Reset, DALI Loop test etc.

Models Available

1. GRYD-WR-DL-1CH-PIR – Wireless PIR Only
2. GRYD-WR-DL-1CH-ALS-PIR – Wireless PIR with Ambient light sensing
3. GRYD-WR-DL-1CH-TH-PIR – Wireless PIR with Temperature Humidity
